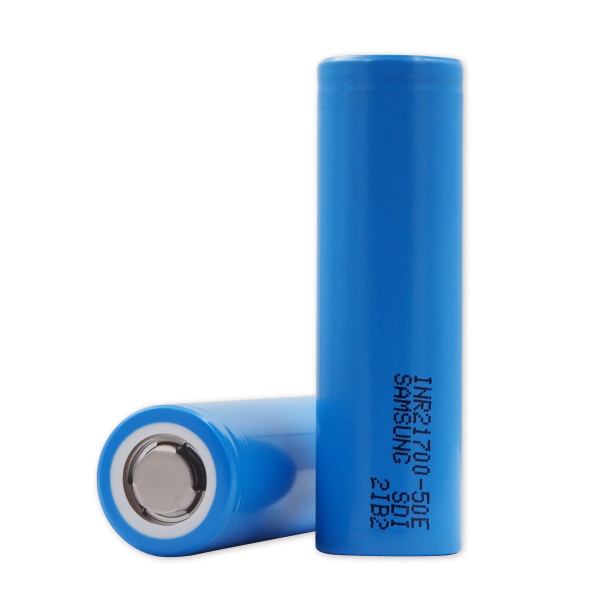

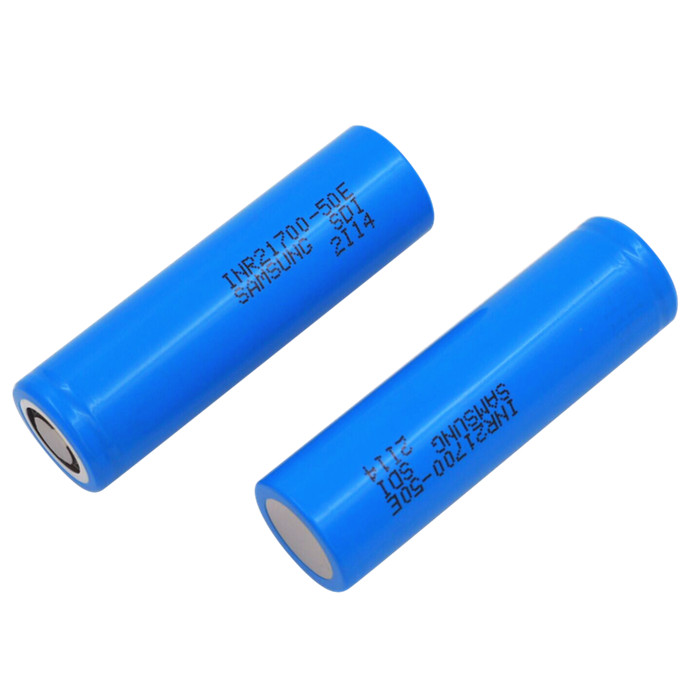

21700 5000mAh Samsung INR21700-50E high capacity 3.6V rechargeable Lithium-ion battery
* Type: High Capacity Li-ion Rechargeable Battery
* Brand: Samsung
* Part No.: INR21700-50E
* Maximum Size: D-20.25mm, L-70.80mm
* Nominal Voltage: 3.6V
* Nominal Capacity: 5000mAh
* Continuous Maximum Discharge Current: 9800mA
* Weight: Max. 69g
* Made in Korea
●  Model: INR21700-50E
●  Nominal Capacity: 5000mAh
●  Minimum Capacity: 4900mAh
    - Charge : 0.5C(2450mA), 4.2V, 0.02C(98mA) cutoff @ RT
    - Discharge : 0.2C(980mA), 2.5V cutoff @ RT
    * 1C=4900mA
●  Nominal Voltage: 3.6V
●  Charging Method: CC-CV
●  Charging Voltage: 4.2V
●  Standard Charging Constant Current: 2450mA
●  Standard Charging Time: 3hours
●  Standard Charging End Current: 98mA
●  Maximum Charging Current: 4900mA(not for cycle life)
●  Discharging Cut-off Voltage: 2.5V
●  Maximum Discharge Current
    - For Continuous Discharge: 9800mA
    - Not For Continuous Discharge: 14700mA
●  Cycle Life: Capacity ≥ 3,802mAh @ after 500cycles(80% of the Rated Discharge Capacity @ RT)
    - Charge:0.5C(2,450mA),4.2V,CCCV0.05C(245mA) cut-off @ RT
    - Discharge: 1C(4,900mA), 2.5V cut-off @ RT
●  Weight: Max. 69g
●  Maximum Dimensions: D-20.25mm, L-70.80mm
●  Storage Temperature: -20 to +60° C
