Prodcuts > High Capacity Bare Cells > Li-ion 18650 Battery

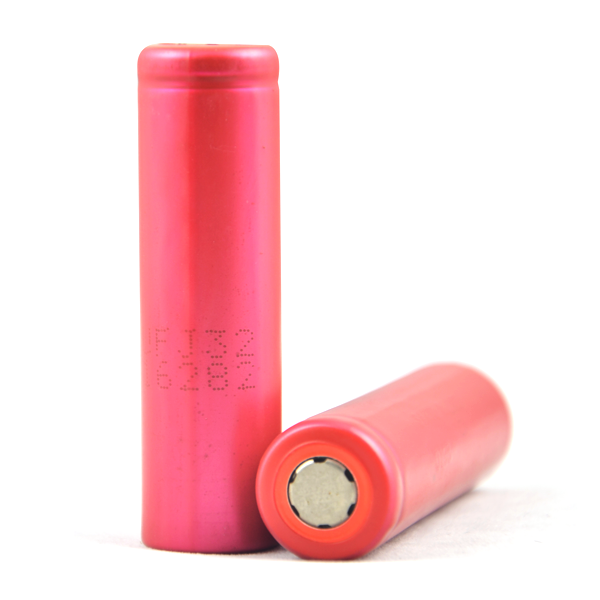

1.Quality Rechargeable Lithium-ion Cell UR18650FJ
2.Brand: Sanyo
3.Model: 18650
4.Nominal Voltage: 3.7V
5.Nominal Capacity: 2200mAh
6.Made in Japan
2.Brand: Sanyo
3.Model: 18650
4.Nominal Voltage: 3.7V
5.Nominal Capacity: 2200mAh
6.Made in Japan
1. Nominal Capacity: 2200mAh
2. Minimum Capacity: 2100mAh
3. Charging Voltage: 4.2V
4. Nominal Voltage: 3.7V
5. Charging Method: Constant Current - Constant Voltage
6. Charging Current: Std. 2100mA
7. Charging Time: 2.5hrs
8. Discharge Cut-off Voltage: 2.75V
9. Cell Weight: 46.5g max
10. Cell Dimension
Height : 64.8mm max
Diameter : 18.10mm max
11. Operating Temperature
Charge : 0 to 40°C
Discharge: -20 to 60°C
Storage: -20 to 50°C
