Prodcuts > High Capacity Bare Cells > Li-ion 18650 Battery

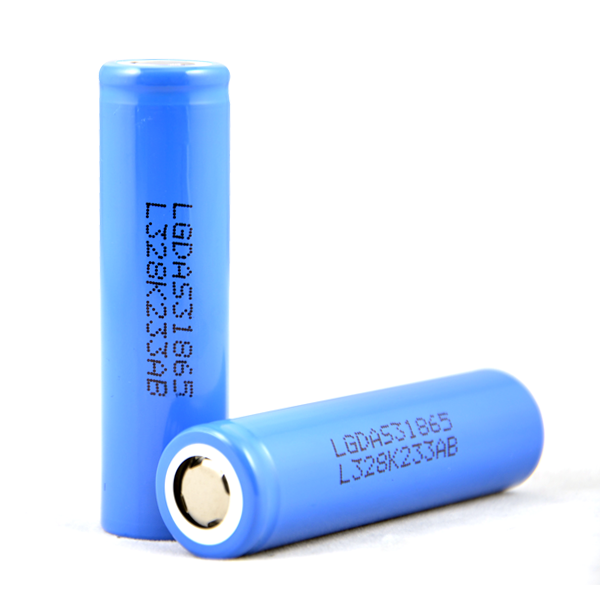

1.Quality Rechargeable Lithium-ion Cell ICR18650S3
2.Brand: LG Chem
3.Model: 18650
4.Nominal Voltage: 3.6V
5.Nominal Capacity: 2200mAh
6.Made in South Korea
2.Brand: LG Chem
3.Model: 18650
4.Nominal Voltage: 3.6V
5.Nominal Capacity: 2200mAh
6.Made in South Korea
1. Min. Capacity: 2200mAh
2. Typical Capacity: 2150mAh
3. Nominal Voltage: 3.6V
4. Standard Charge
Constant current: 1075mA
Constant voltage: 4.2V
End current(Cut off): 50mA
5. Max. Charge Voltage: 4.2V
6. Max. Charge Current: 2150mA
7. Standard Dicharge
Constant current: 430mA
End Voltage(Cut off): 3.0V
8. Max. Discharge Current
-20 ~ 5°C 1250mA
5 ~ 45°C 5000mA
45 ~ 60°C 3750mA
9. Weight: Max. 47g
10. Operating Temperature
Charge: 0 ~ 45 °C
Discharge: -20 ~ 60 °C
