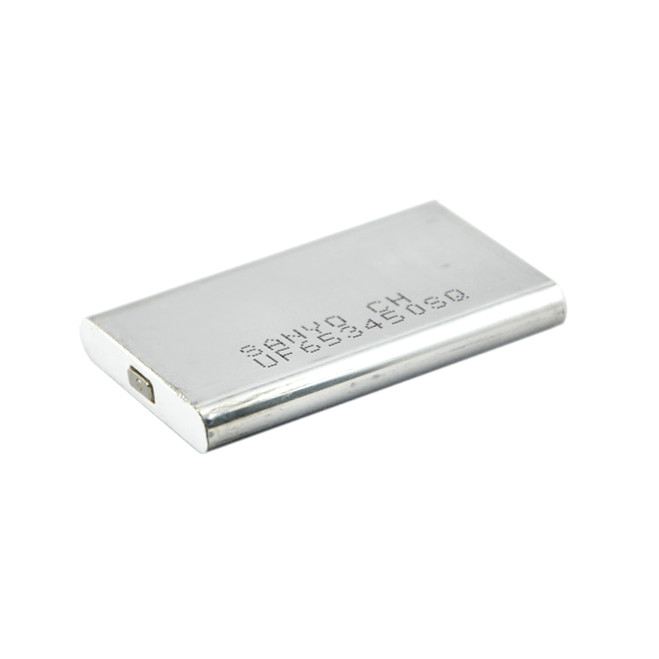

1.Quality Rechargeable Lithium-ion Prismatic Cell
2.Model: UF653450S
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 1200mAh
5.Made in Japan
2.Model: UF653450S
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 1200mAh
5.Made in Japan
1. Nominal Capacity: Min. 1200mAh
2. Nominal Voltage: 3.7V
3. Charging Method: CC-CV(constant voltage with limited current)
4. Charging Voltage: 4.2V
5. Standard Charging Current: 1200mA
6. Charging Time: 2.5hours
7. Discharge Cut-off Voltage: 2.5V
8. Cell Weight: 25.0g max
9. Cell Dimension
Thickness :6.40mm
Height : 49.80mm
Width : 33.85mm
10. Ambient Temperature
Charge : 0 to 40°C
Discharge: -20 to 60°C
Storage: -20 to 50 °C
11. Volumetric Energy Density: 411Wh/l
12. Gravimetric Energy Density: 179Wh/kg
