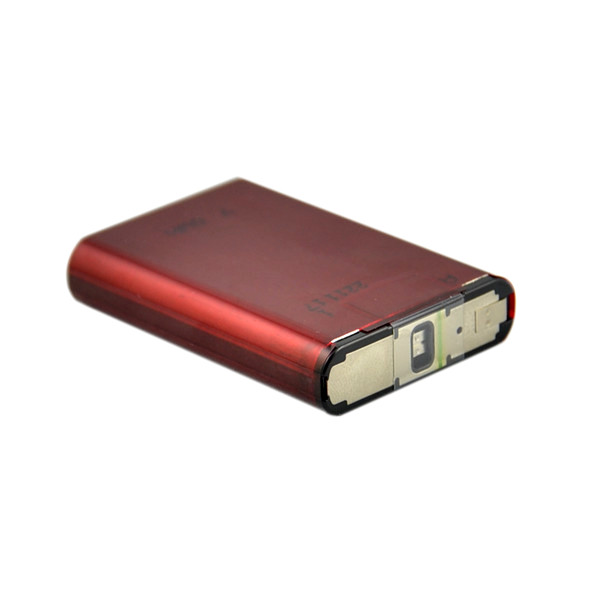

103450 sanyo UF103450P li-ion prismatic battery cell with fuse 1880mAh

Prodcuts > High Capacity Bare Cells > Li-ion Prismatic

1.Quality Rechargeable Lithium-ion Prismatic Cell
2.Model: UF103450P
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 1880mAh
5.Made in Japan

Details
Product Description

1. Nominal Capacity: 1880mAh
2. Charging Voltage: 4.2V
3. Nominal Voltage: 3.7V
4. Charging Method: CC-CV(constant voltage with limited current)
5. Standard Charging Current: 1880mA
6. Charging Time: 2.5 hours
7. Discharge Cut-off Voltage: 2.75V

8. Additional Fuse: YES
9. Cell Weight: 39g max
10. Cell Dimension
Thickness : 10.50mm

     Height : 48.80mm
     Width : 33.80mm
11. Ambient Temperature
    Charge : 0 to 40°C
   Discharge: -20 to 60°C

Storge: -20 to 50°C
