Prodcuts > High Capacity Bare Cells > Li-ion Prismatic

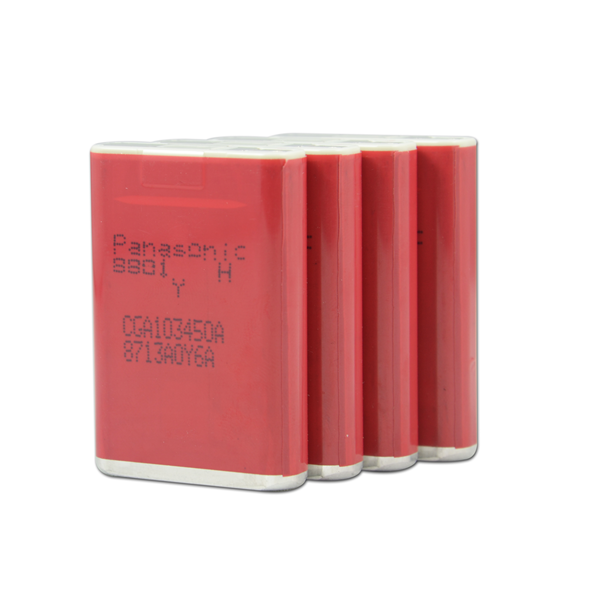

103450 Panasonic CGA103450A prismatic li-ion battery 1950mAh
1.Quality Rechargeable Lithium-ion Prismatic Cell
2.Model: CGA103450A
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 1950mAh
5.Made in Japan

1.   Rated voltage: 3.7V

2.   Nominal capacity: 1950mAh

3.   Rated capacity: 1850mAh

4.   Standard charging: 4.2V, 370mA, 100mA (Constant voltage, constant current)

                                            (Maximum charging voltage: 4.25V)

                                             Charging method and charger are only those designated

5.   Quick charging: 4.2V, 1295mA, 100mA (Constant voltage, constant current)

                                            (Maximum charging voltage: 4.25V)

                                            Charging method and charger are only those designated

6.   Standard discharging: 370mA (Constant current, 3.0V end)

7.   Continuous allowable discharging current: 2200mA (45°C or under)

8.   Dimension: 34.0mm(L)*10.6mm(W)*50.0mm(H)

9.   Cell weight: Max.42.0g
