Prodcuts > High Capacity Bare Cells > Li-ion Polymer

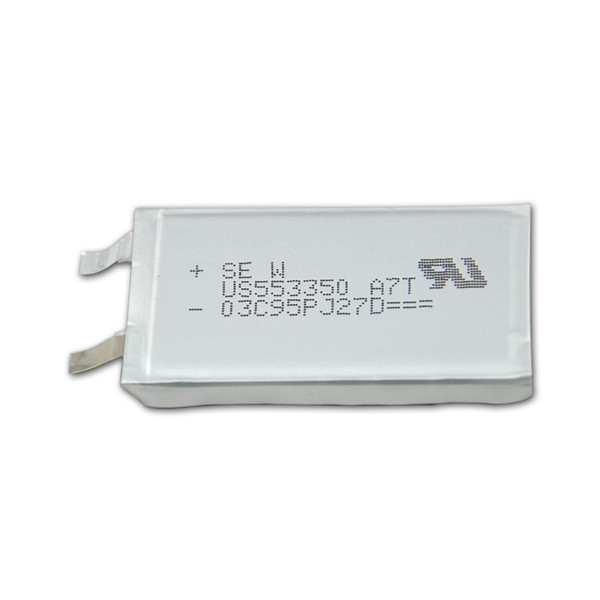

1.Quality Rechargeable Lithium-Polymer Cell
2.Model: US553350
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 1100mAh
5.Made in Japan
2.Model: US553350
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 1100mAh
5.Made in Japan
1. Cell Name: US553350
2. Model Number: US553350 A7T
3. Cell Shape: Prismatic
4. Size
Thickness: 55mm max
Width: 33.0mm max
Length(without tab): 50.0mm max
5. Weight : 17.1 g (typical)
6. Nominal Capacity: 1100mAh(0.2C discharge)
7. Min. Capacity: 1050mAh(0.2C discharge)
8. Nominal Voltage: 3.7V
9. Intermal Impedance: 44Ω
10. Cycle Performance: 90% of initial capacity(1.0C discharge rate at 200cycles)
11. Charge Method: constant current constant voltage
12. Charge Up Voltage: 4.2V±0.05V
13. Charge Current: 0.8A
14. Charge Time: 2.5hours charge
15. Ambiance Temperature: 23°C
2. Model Number: US553350 A7T
3. Cell Shape: Prismatic
4. Size
Thickness: 55mm max
Width: 33.0mm max
Length(without tab): 50.0mm max
5. Weight : 17.1 g (typical)
6. Nominal Capacity: 1100mAh(0.2C discharge)
7. Min. Capacity: 1050mAh(0.2C discharge)
8. Nominal Voltage: 3.7V
9. Intermal Impedance: 44Ω
10. Cycle Performance: 90% of initial capacity(1.0C discharge rate at 200cycles)
11. Charge Method: constant current constant voltage
12. Charge Up Voltage: 4.2V±0.05V
13. Charge Current: 0.8A
14. Charge Time: 2.5hours charge
15. Ambiance Temperature: 23°C
