Prodcuts > High Capacity Bare Cells > Li-ion Polymer

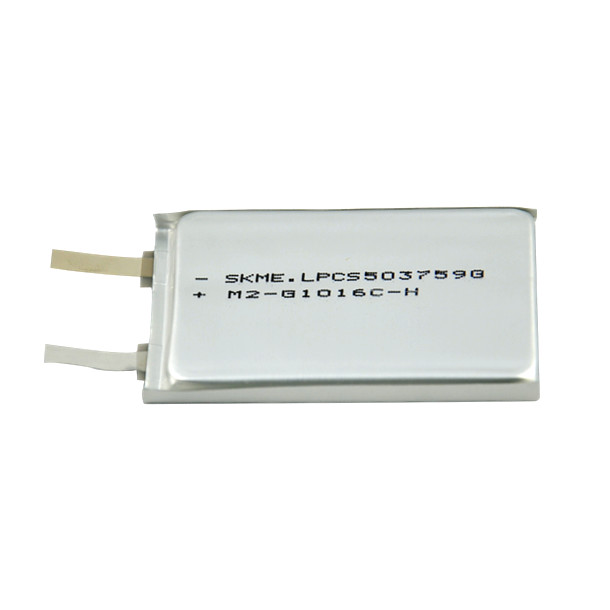

1.Quality Rechargeable Lithium-Polymer Cell
2.Model: LPCS503759
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 1350mAh
5.Made in South Korea
2.Model: LPCS503759
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 1350mAh
5.Made in South Korea
1. Model name: LPCS 503759
2. Nominal Capacity: 1350mAh(Discharge:0.2C, Cut off Voltage:3.0V)
3. Minimum Capacity: 1320mAh(Discharge:0.2C,Cut off Voltage:3.0V)
4. Rate capability: 1C Discharge : ≥95%@ RT
5. Charge Voltage: 4.20V
6. Average Voltage: 3.70V
7. Discharge Cut-Off Voltage: 3.00V
8. Weight of Bare Cell: Approx. 23g
9. Maximum Charge Current: 1.0CmA (1320mA)
10.Maximum Discharge Current: 2.0CmA (2640mA)
11.Operating Temperature
Charge: 0 ~ 45 °C
Discharge: -20 ~ 60°C
12. Stand
Charge: 0.5CmA CC/CV to 4.2V, 1/20CmA cut
Discharge: 0.2CmA CC to 3.0V cut
2. Nominal Capacity: 1350mAh(Discharge:0.2C, Cut off Voltage:3.0V)
3. Minimum Capacity: 1320mAh(Discharge:0.2C,Cut off Voltage:3.0V)
4. Rate capability: 1C Discharge : ≥95%@ RT
5. Charge Voltage: 4.20V
6. Average Voltage: 3.70V
7. Discharge Cut-Off Voltage: 3.00V
8. Weight of Bare Cell: Approx. 23g
9. Maximum Charge Current: 1.0CmA (1320mA)
10.Maximum Discharge Current: 2.0CmA (2640mA)
11.Operating Temperature
Charge: 0 ~ 45 °C
Discharge: -20 ~ 60°C
12. Stand
Charge: 0.5CmA CC/CV to 4.2V, 1/20CmA cut
Discharge: 0.2CmA CC to 3.0V cut
