Prodcuts > High Capacity Bare Cells > Li-ion Polymer

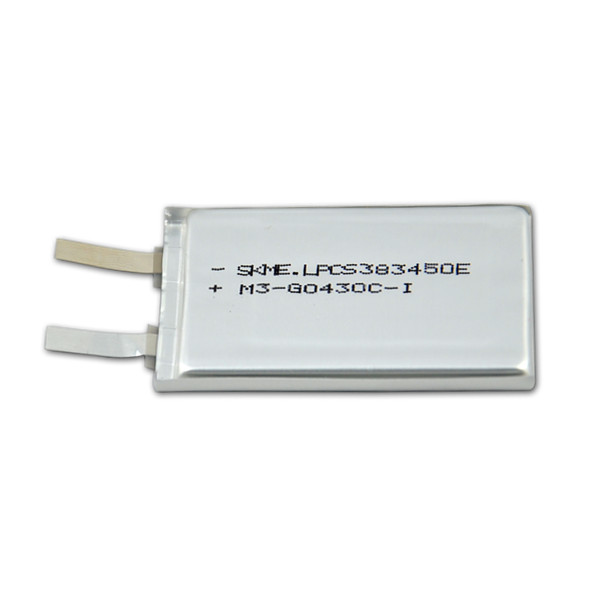

1.Quality Rechargeable Lithium-Polymer Cell
2.Model: LPCS383450
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 840mAh
5.Made in South Korea
2.Model: LPCS383450
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 840mAh
5.Made in South Korea
1. Model name: LPCS 383450
2. Nominal Capacity: 840mAh(Discharge:0.2C, Cut off Voltage:2.75V)
3. Minimum Capacity: 820mAh(Discharge:0.2C,Cut off Voltage:2.75V)
4. Charge Voltage: 4.20V
5. Average Voltage: 3.70V
6. Discharge Cut-Off Voltage: 2.75V
7. Weight of Bare Cell: Approx. 14g
8. Maximum Charge Current: 1.0CmA (820mA)
9. Maximum Discharge Current: 2.0CmA (1640mA)
10.Operating Temperature
Charge: 0 ~ 45 °C
Discharge: -20 ~ 60°C
11. Standard
Charge: 0.5CmA CC/CV to 4.2V, 1/20CmA cut
Discharge: 0.2CmA CC to 3.0V cut
2. Nominal Capacity: 840mAh(Discharge:0.2C, Cut off Voltage:2.75V)
3. Minimum Capacity: 820mAh(Discharge:0.2C,Cut off Voltage:2.75V)
4. Charge Voltage: 4.20V
5. Average Voltage: 3.70V
6. Discharge Cut-Off Voltage: 2.75V
7. Weight of Bare Cell: Approx. 14g
8. Maximum Charge Current: 1.0CmA (820mA)
9. Maximum Discharge Current: 2.0CmA (1640mA)
10.Operating Temperature
Charge: 0 ~ 45 °C
Discharge: -20 ~ 60°C
11. Standard
Charge: 0.5CmA CC/CV to 4.2V, 1/20CmA cut
Discharge: 0.2CmA CC to 3.0V cut
