Prodcuts > High Capacity Bare Cells

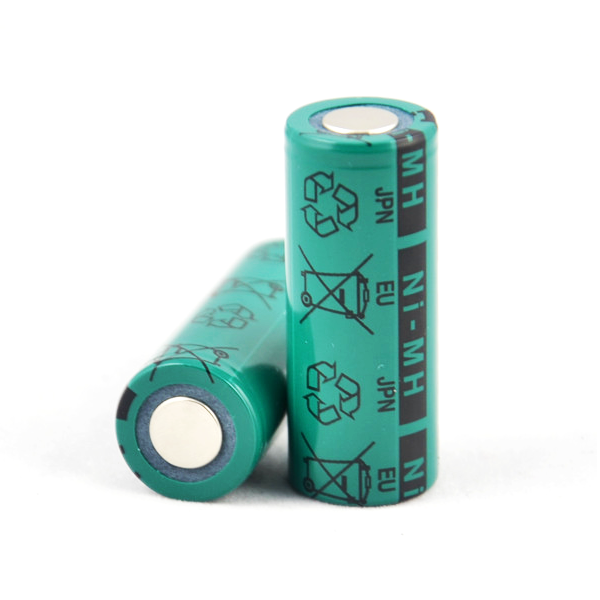

1.Quality Rechargeable NIMH Battery HR-4/5AU
2.Model: 4/5A
3.Nominal Voltage: 1.2V
4.Nominal Capacity: 2150mAh
5.Made in Japan
2.Model: 4/5A
3.Nominal Voltage: 1.2V
4.Nominal Capacity: 2150mAh
5.Made in Japan
1. Model: FDK HR-4/5AU 4/5a nimh rechargeable battery 1.2v
2. Type: Nickel-Metal Hydride Battery
3. Size: 4/5A
4. Typical Capacity: 2150mAh
5. Minimum Capacity: 1950mAh
6. Nominal Voltage: 1.2V
7. Charging Current x Time: 2150 mA x about 1.1h
8. Ambient Temp.
Charge Condition: 0 - 40°C
Discharge Condition: 0 -50°C
Storage Condition
Less than 30 days: -20 - 50°C
Less than 90 days: -20 - 40°C
Less than 1 year: -20 - 30°C
9. Internal Impedance(after discharge to E.V.=1.0V)
Approx.25mΩ(at 1000Hz)
10. Weight: Approx. 35g
11. Size:(Diameter)x(Height)
17.0(D) x 43.0(H) mm
2. Type: Nickel-Metal Hydride Battery
3. Size: 4/5A
4. Typical Capacity: 2150mAh
5. Minimum Capacity: 1950mAh
6. Nominal Voltage: 1.2V
7. Charging Current x Time: 2150 mA x about 1.1h
8. Ambient Temp.
Charge Condition: 0 - 40°C
Discharge Condition: 0 -50°C
Storage Condition
Less than 30 days: -20 - 50°C
Less than 90 days: -20 - 40°C
Less than 1 year: -20 - 30°C
9. Internal Impedance(after discharge to E.V.=1.0V)
Approx.25mΩ(at 1000Hz)
10. Weight: Approx. 35g
11. Size:(Diameter)x(Height)
17.0(D) x 43.0(H) mm
