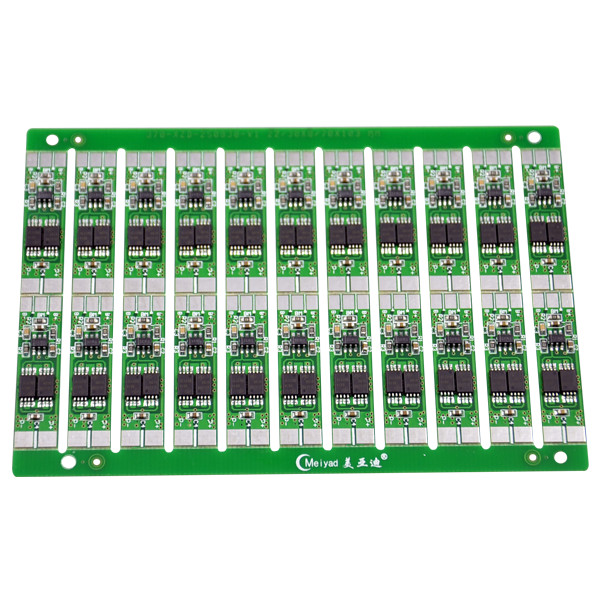

2S PCB/PCM for 2 series li-ion battery pack 2S-0830
1. Brand Name: KeepPower
2. Model: 2S-0830
3. PCB Size: (L)30 * (W)7.9 *(δ)0.8mm
4. Application: 2S li-ion battery pack
5. IC made in Japan
1.   Model: XZD-2S0830
2.   PCB Size: (L)30 * (W)7.9 *(δ)0.8mm
3.   Overcharge detection voltage(VCU): 4.25±0.025V
4.   Overcharge detection delay time: 1.0±0.5 S
5.   Overcharge release voltage: 4.05±0.05V
6.   Under-discharge detection voltage(VDD): 2.40±0.08V
7.   Under-discharge detection delay time: 1.0±0.5 S
8.   3.6 Under-discharge release voltage: 3.0±0.1V
9.   Excess current threshold (IEC): 3A-5A
10.  Maximum Continuous Current: 2-3A
11.  Short detection delay time: MAX.10mS
12.  Supply current(V cell=3.5V): MAX.10μA
13.  Standby current(V cell=1.8v): MAX. 1uA
14.  PCB total resister: MAX. 60mΩ
