Prodcuts > Accessories > PCM

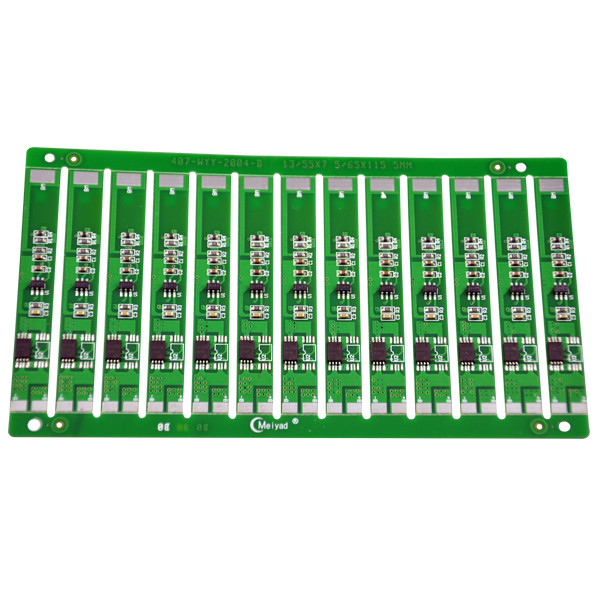

1. Brand Name: KeepPower
2. Model: 2S-2004-1MOS
3. PCB Size: （L）55 * （W）7.5 *（δ） 0.6mm
4. Application: 2S li-ion battery pack
5. IC made in Japan
2. Model: 2S-2004-1MOS
3. PCB Size: （L）55 * （W）7.5 *（δ） 0.6mm
4. Application: 2S li-ion battery pack
5. IC made in Japan
1. Model: 2S-2004-1MOS
2. PCB Size: (L)55 * (W)7.5 *(δ) 0.6mm
3. Overcharge detection voltage(VCU): 4.35±0.05V
4. Overcharge detection delay time: 1.0±0.5mS
5. Over discharge detection voltage: 2.3±0.1V
6. Over discharge detection delay time: 1.0±0.5ms
7. Over current detection voltage: 0.30±0.015V
8. Over current detection current: 3-5 A
9. Detection delay time: 1.0s
10. Release condition: Cut load
11. Detection conditionp: Exterior short circuit
12. Detection delay time: 10ms
13. Release condition: Remove the Load
14. Normal mode: 10uA
