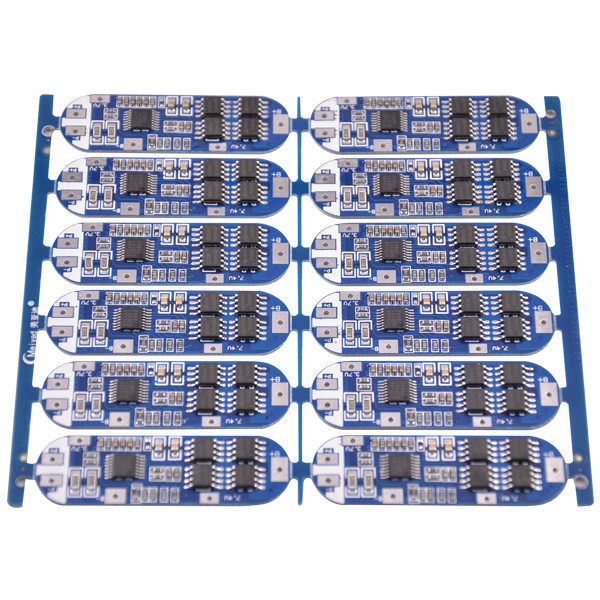

1. Brand Name: KeepPower
2. Model: 3S-1550
3. PCB Size: （L）50 *（W）15 * （δ）1.0mm
4. Application: 3S li-ion battery pack
5. IC made in Japan
2. Model: 3S-1550
3. PCB Size: （L）50 *（W）15 * （δ）1.0mm
4. Application: 3S li-ion battery pack
5. IC made in Japan
1. Overcharge detection voltage(VCU): 4.25±0.025V
2. Overcharge detection delay time: 1.0±0.5m S
3. Overcharge release voltage: 4.075±0.05V
4. Under-discharge detection voltage(VDD): 2.30±0.10V
5. Under-discharge detection delay time: 1.0±0.5 mS
6. 3.6 Under-discharge release voltage: 2.70±0.1V
7. Excess current threshold (IEC): 10A-18A
8. Maximum Continuous Current: 5-6A
9. Short detection delay time: MAX.18mS
10. Supply current (V cell=3.5V): MAX.10μA
11. Standby current (V cell=1.8v): MAX. 1uA
12. PCB total resister: MAX. 55mΩ
