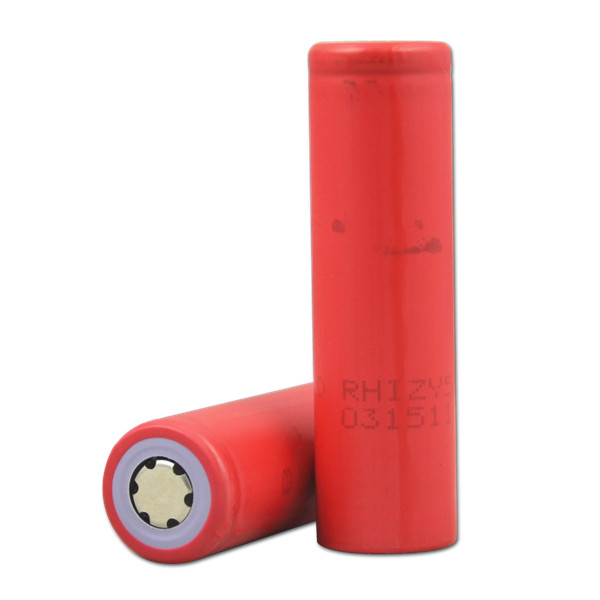

*New 18650 2600mah li-ion battery cell from Sanyo
*Model Name: UR18650ZY
*Max. Continuous Discharging Current: 5.0A
*Size: （D）18.2mm*（H）64.7mm
*Made in Japan
*Model Name: UR18650ZY
*Max. Continuous Discharging Current: 5.0A
*Size: （D）18.2mm*（H）64.7mm
*Made in Japan
1. Min. Capacity: 2500mAh (0.2CA discharge)
2. Typical Capacity: 2600mAh (0.2CA discharge)
3. Nominal Voltage: 3.7V
4. End Voltage: 2.75V
5. Charging Current (Std.): 1.75 A(0 ~ +40°C)
6. Charging Voltage: 4.20±0.03V
7. Charging Time (Std.): 3 hours
8. Discharging Current (Std.): 2.5A (-20~ +60°C)
9. Discharging Current (Max.): 5.0A (0~ +40°C)
10. Internal Resistance: less than 100Mω(AC Impedance 1kHz)
11. Weight: less than 48g
12. Surroundings temperature range for shipped battery
less than 1month: -20 ~ +60°C
less than 3months: -20 ~ +45°C
less than 1year: -20 ~ +20°C
Note: Percentage of recoverable capacity 80%

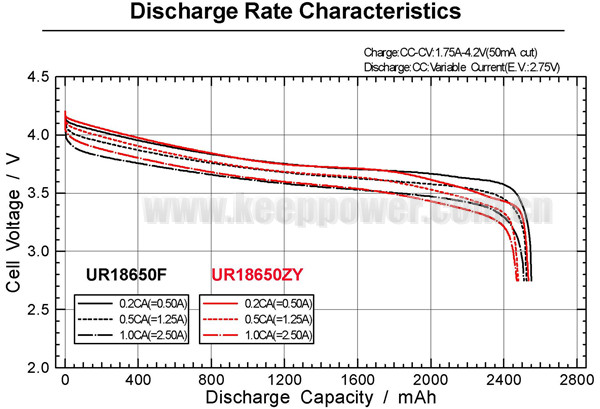

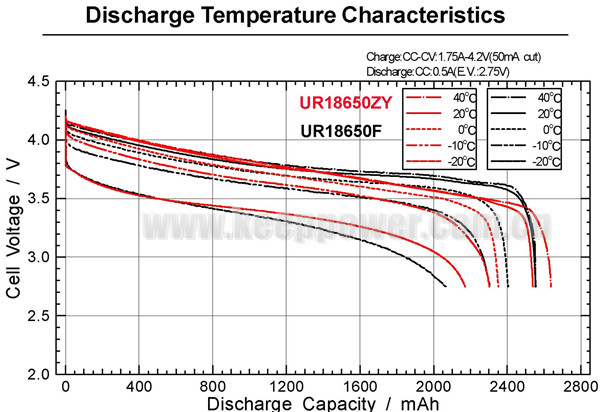

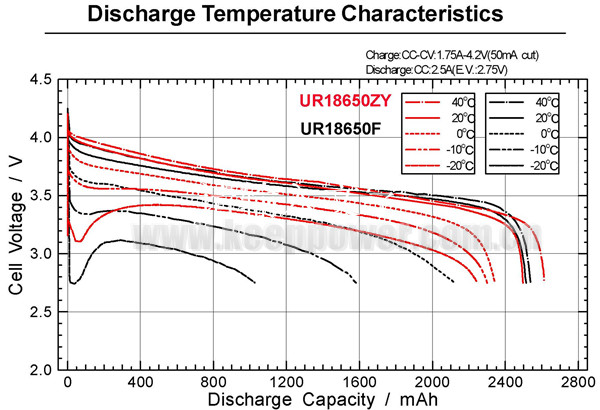

UR18650ZY VS UR18650FM
