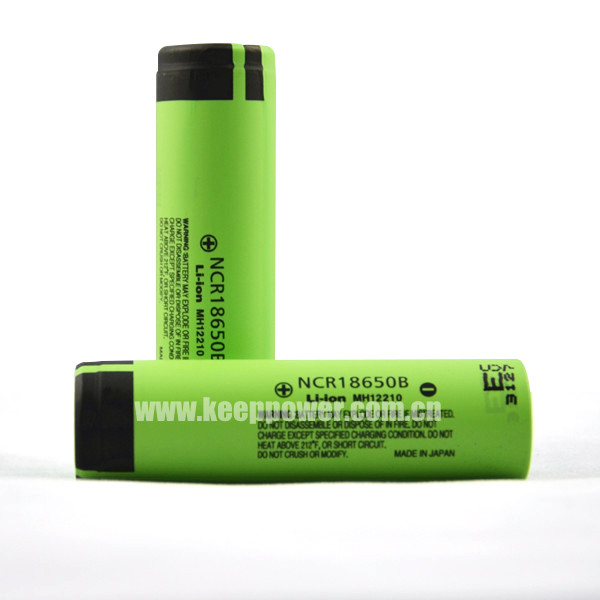

Prodcuts > High Capacity Bare Cells > Li-ion 18650 Battery
* Type: High Capacity Li-ion Rechargeable Battery
* Brand: Panasonic
* Part No.: NCR18650B
* Maximum Dimensions: （D）18.50*（L）65.30mm
* Nominal Voltage: 3.6V
* Nominal Capacity: 3400mAh
* Continuous Maximum Discharge Current: 4.875A
* Weight: 48.5g
* Made in Japan
* Brand: Panasonic
* Part No.: NCR18650B
* Maximum Dimensions: （D）18.50*（L）65.30mm
* Nominal Voltage: 3.6V
* Nominal Capacity: 3400mAh
* Continuous Maximum Discharge Current: 4.875A
* Weight: 48.5g
* Made in Japan
● Model: NCR18650B
● Nominal Capacity: 3400mAh
● Minimum Capacity: 3250mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Charging Voltage: 4.20±0.03V
● Standard Charge Current: 1625mA
● Standard Charge Time: 240min.
● Discharge Cut-off Voltage: 2.5V
● Continuous Maximum Discharge Current: 4.875A
● Weight: 48.5g
● Maximum Dimensions: (D)18.50*(L)65.30mm
● Temperature
Charge: 0 to +40° C
Discharge: -20 to +60° C
Storage: -20 to +50° C
● Nominal Capacity: 3400mAh
● Minimum Capacity: 3250mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Charging Voltage: 4.20±0.03V
● Standard Charge Current: 1625mA
● Standard Charge Time: 240min.
● Discharge Cut-off Voltage: 2.5V
● Continuous Maximum Discharge Current: 4.875A
● Weight: 48.5g
● Maximum Dimensions: (D)18.50*(L)65.30mm
● Temperature
Charge: 0 to +40° C
Discharge: -20 to +60° C
Storage: -20 to +50° C
