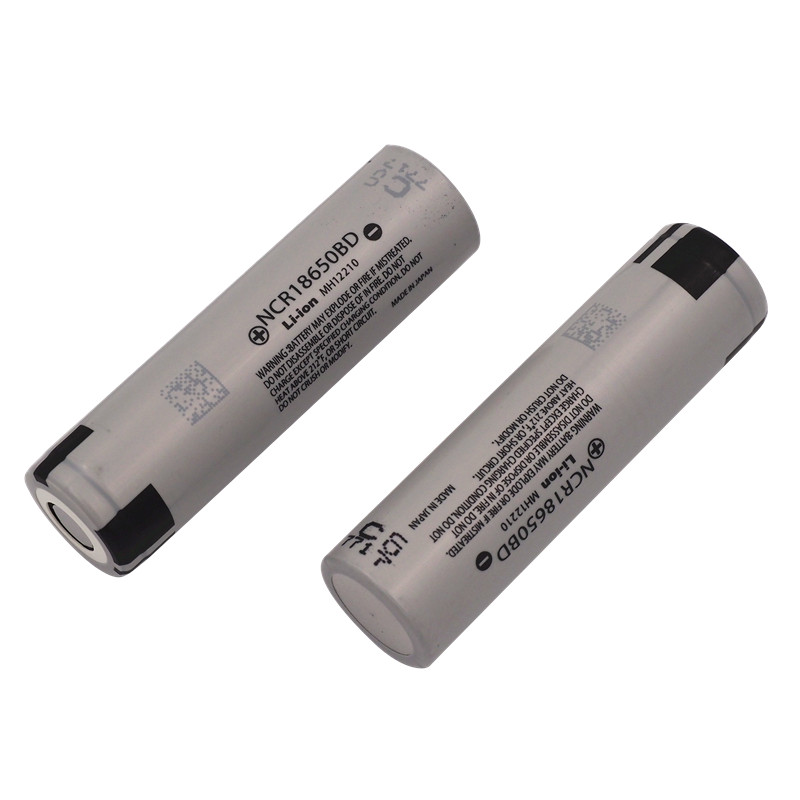

* Type: High Current Li-ion Rechargeable Battery
* Brand: Panasonic
* Part No.: NCR18650BD
* Maximum Size: D-18.50mm, L-65.30mm
* Nominal Voltage: 3.6V
* Nominal Capacity: 3200mAh
* Continuous Maximum Discharge Current: 10A
* Weight: 49.0g
* Made in Japan
* Brand: Panasonic
* Part No.: NCR18650BD
* Maximum Size: D-18.50mm, L-65.30mm
* Nominal Voltage: 3.6V
* Nominal Capacity: 3200mAh
* Continuous Maximum Discharge Current: 10A
* Weight: 49.0g
* Made in Japan
● Model: NCR18650BD
● Typical Capacity: 3200mAh
● Minimum Capacity: 3080mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Charging Voltage: 4.20±0.03V
● Standard Charging Constant Current: 900mA
● Standard Charging Time: 8.0 hours
● Discharging Cut Off Voltage: 2.5V
● Continuous Standard Discharge Current: 610mA
● Continuous Maximum Discharge Current: 10A
● Weight: 49.0g
● Maximum Dimensions: D-18.50mm, L-65.30mm
● Operating Temperature
Charge: +10 to +45° C
Discharge: -20 to +60° C
● Storage Temperature: -20 to +50° C
● Typical Capacity: 3200mAh
● Minimum Capacity: 3080mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Charging Voltage: 4.20±0.03V
● Standard Charging Constant Current: 900mA
● Standard Charging Time: 8.0 hours
● Discharging Cut Off Voltage: 2.5V
● Continuous Standard Discharge Current: 610mA
● Continuous Maximum Discharge Current: 10A
● Weight: 49.0g
● Maximum Dimensions: D-18.50mm, L-65.30mm
● Operating Temperature
Charge: +10 to +45° C
Discharge: -20 to +60° C
● Storage Temperature: -20 to +50° C
