Prodcuts > High Capacity Bare Cells > Li-ion 18650 Battery

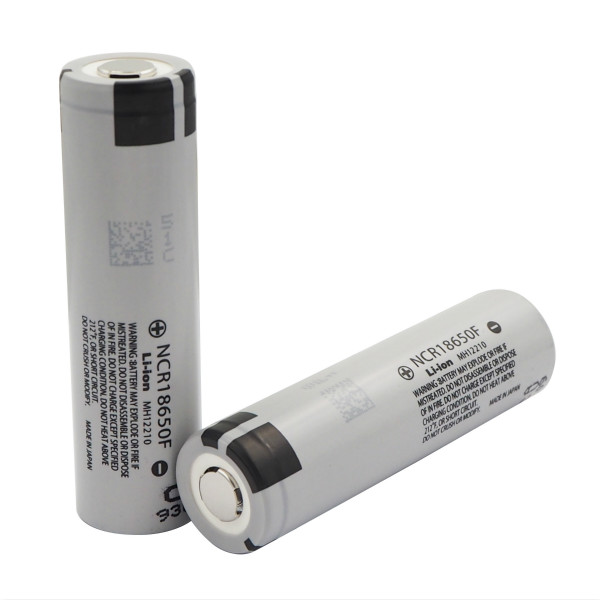

* Type: High Capacity Li-ion Rechargeable Battery With Superior Low Temperature Performance
* Brand: Panasonic
* Part No.: NCR18650F
* Maximum Size: D-18.20mm, L-65.20mm
* Nominal Voltage: 3.6V
* Nominal Capacity: 2900mAh
* Low Stable Power And Long Run Time With High Energy Density
* Weight: 46.5g
* Made in Japan
* Brand: Panasonic
* Part No.: NCR18650F
* Maximum Size: D-18.20mm, L-65.20mm
* Nominal Voltage: 3.6V
* Nominal Capacity: 2900mAh
* Low Stable Power And Long Run Time With High Energy Density
* Weight: 46.5g
* Made in Japan
● Model: NCR18650F
● Typical Capacity: 2900mAh
● Minimum Capacity: 2750mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Charging Voltage: 4.20±0.05V
● Standard Charging Constant Current: 580mA
● Maximum Charging Constant Current: 1375mA
● Discharging Cut Off Voltage: 2.5V
● Continuous Standard Discharge Current: 2900mA
● Continuous Maximum Discharge Current: 5500mA
● Weight: 46.5g
● Maximum Dimensions: D-18.20mm, L-65.20mm
● Operating Temperature
Charge: 0 to +45° C
Discharge: -20 to +60° C
● Storage Temperature: -20 to +50° C
● Typical Capacity: 2900mAh
● Minimum Capacity: 2750mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Charging Voltage: 4.20±0.05V
● Standard Charging Constant Current: 580mA
● Maximum Charging Constant Current: 1375mA
● Discharging Cut Off Voltage: 2.5V
● Continuous Standard Discharge Current: 2900mA
● Continuous Maximum Discharge Current: 5500mA
● Weight: 46.5g
● Maximum Dimensions: D-18.20mm, L-65.20mm
● Operating Temperature
Charge: 0 to +45° C
Discharge: -20 to +60° C
● Storage Temperature: -20 to +50° C
