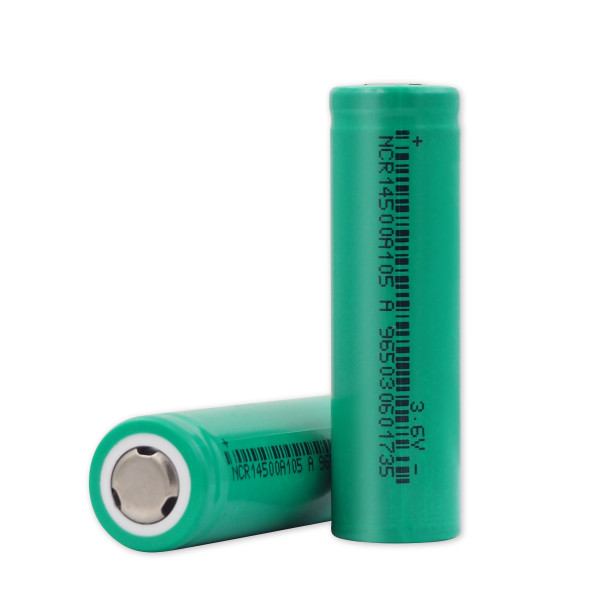

1.Quality Rechargeable Lithium-ion Cell INR14500-1100
2.Model: 14500
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 1100mAh
5.Made in China
2.Model: 14500
3.Nominal Voltage: 3.7V
4.Nominal Capacity: 1100mAh
5.Made in China
1. Type: Rechargeable Lithium-ion Cylindrical Cell
2. Dimension
Φ=14.0±0.2mm
H=48.8±0.2mm
3. Nominal Capacity: 1100mAh
4. Minimum Capacity: 1000mAh
5. Nominal Voltage: 3.7V
6. Recommended Charging Conditions
210~750mA charge termination control parameters taper current 7mA at 4.2V
7. Max. Continuous Discharge Current: 2000mA
8. Cycle Life: 300cycles(≥80% C5mAh)
9. Weight: Approximately 21.2g
10. Internal Resistanc: <75mΩ
11. Charging Voltage: 4.200±0.03V
12. Temperature
Charge: 0~+45°C
Discharge: -20~+60°C
Storage: -20~+25°C
