Prodcuts > Keeppower Selected Cells > High Capacity Series

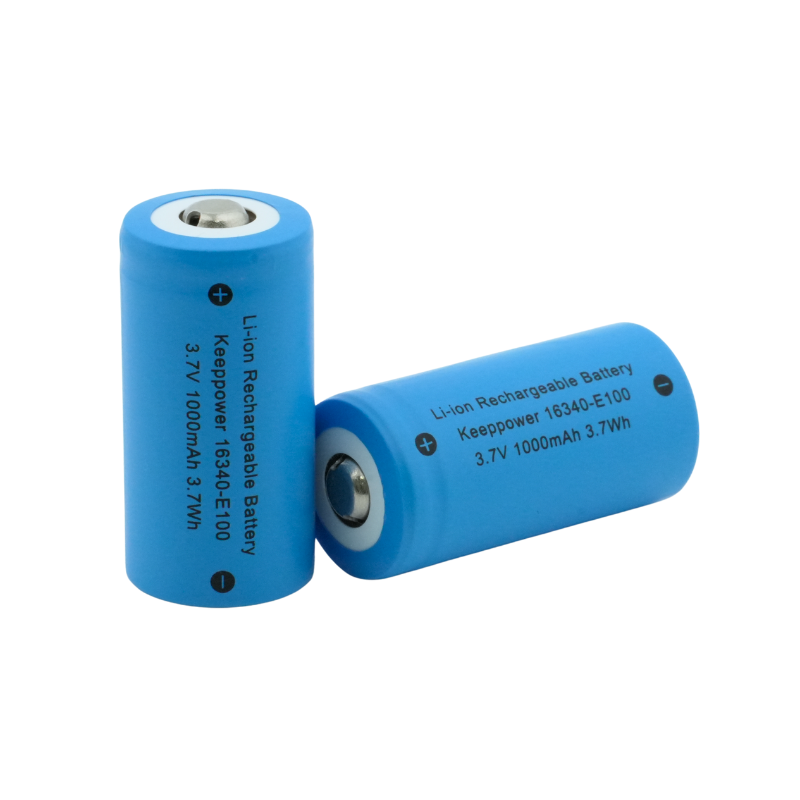

* Type: High Capacity Li-ion Rechargeable Battery Cell
* Brand: Keeppower
* Part No.: 16340-E100
* Maximum Size: （D）16.7*（L）34.3mm
* Nominal Voltage: 3.7V
* Nominal Capacity: 1000mAh
* Continuous Maximum Discharge Current: 2A
* Weight: 19.0g
* Brand: Keeppower
* Part No.: 16340-E100
* Maximum Size: （D）16.7*（L）34.3mm
* Nominal Voltage: 3.7V
* Nominal Capacity: 1000mAh
* Continuous Maximum Discharge Current: 2A
* Weight: 19.0g
● Model: 16340-E100
● Nominal Capacity: 1000mAh
● Minimum Capacity: 950mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Charging Voltage: 4.20V
● Standard Charging Current: 200mA
● Standard Charging Time: 180min.
● Cut Off Voltage: 2.5V
● Standard Discharging Current: 200mA
● Continuous Maximum Discharge Current: 2A
● Weight: 19.0g
● Maximum Dimensions: (D)16. 7*(L)34. 3mm
● Temperature
Charge: 0 to +45° C
Discharge: -20 to +60° C
Storage: -20 to +20° C
● Nominal Capacity: 1000mAh
● Minimum Capacity: 950mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Charging Voltage: 4.20V
● Standard Charging Current: 200mA
● Standard Charging Time: 180min.
● Cut Off Voltage: 2.5V
● Standard Discharging Current: 200mA
● Continuous Maximum Discharge Current: 2A
● Weight: 19.0g
● Maximum Dimensions: (D)16. 7*(L)34. 3mm
● Temperature
Charge: 0 to +45° C
Discharge: -20 to +60° C
Storage: -20 to +20° C
