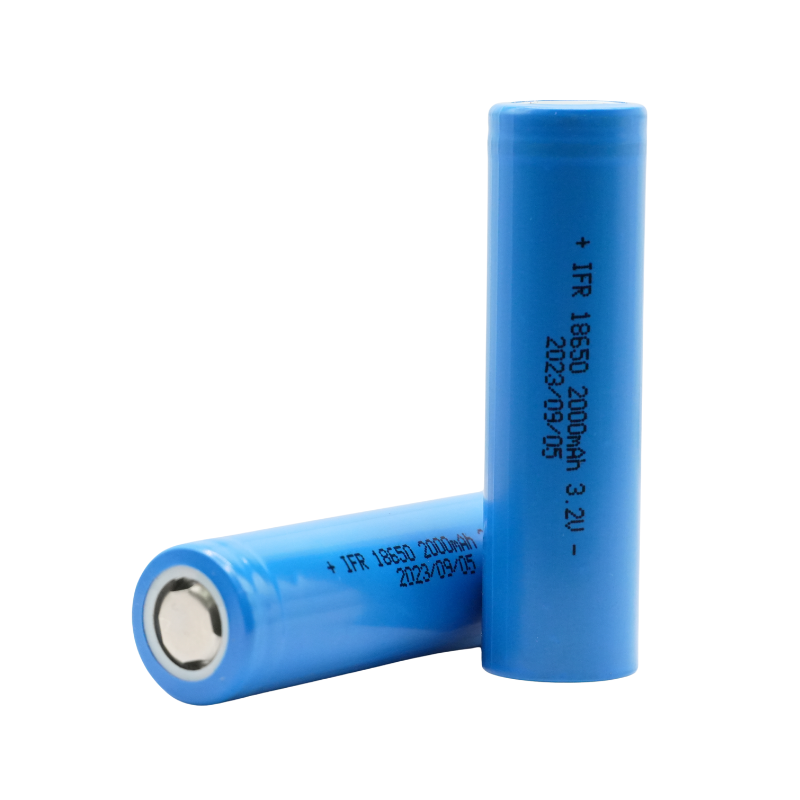

1.Quality Rechargeable LiFePO4 Cell IFR18650
2.Model: IFR18650
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 2000mAh
5.Made in China
2.Model: IFR18650
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 2000mAh
5.Made in China
1. Type: Cylindrical LFP rechargeable lithium ion battery
2. Dimension
Φ=18.3±0.2mm
H=65.3±0.5mm
3. Nominal Capacity: 2000mAh
4. Minimum Capacity: 1950mAh
4. Minimum Capacity: 1950mAh
5. Nominal Voltage: 3.2V
6. Limited Charging Voltage: 3.65V
7. Standard Charging Current: 400mA
8. Rapid charging Current: 1000mA
9. Max Charging Current: 2000mA
6. Limited Charging Voltage: 3.65V
7. Standard Charging Current: 400mA
8. Rapid charging Current: 1000mA
9. Max Charging Current: 2000mA
10. Recommended Charging Conditions: 0.2C CC to 3.65V, then CV to 0.01C
11. Standard Charging Current: 400mA
12. Max. Continuous Discharge Current: 6A
12. Max. Continuous Discharge Current: 6A
13. Cycle Life: 2000cycles [Initial Capacity≥80%]
14. Weight: Approximately 46g
15. Internal Resistance: ≤30mΩ
16. Temperature
Charge: 0~+45°C
Discharge: -20~+60°C
Storage: -20~+45°C (1 month)
-20~+35°C (3 months)
-20~+25°C (12 months)
-20~+35°C (3 months)
-20~+25°C (12 months)
