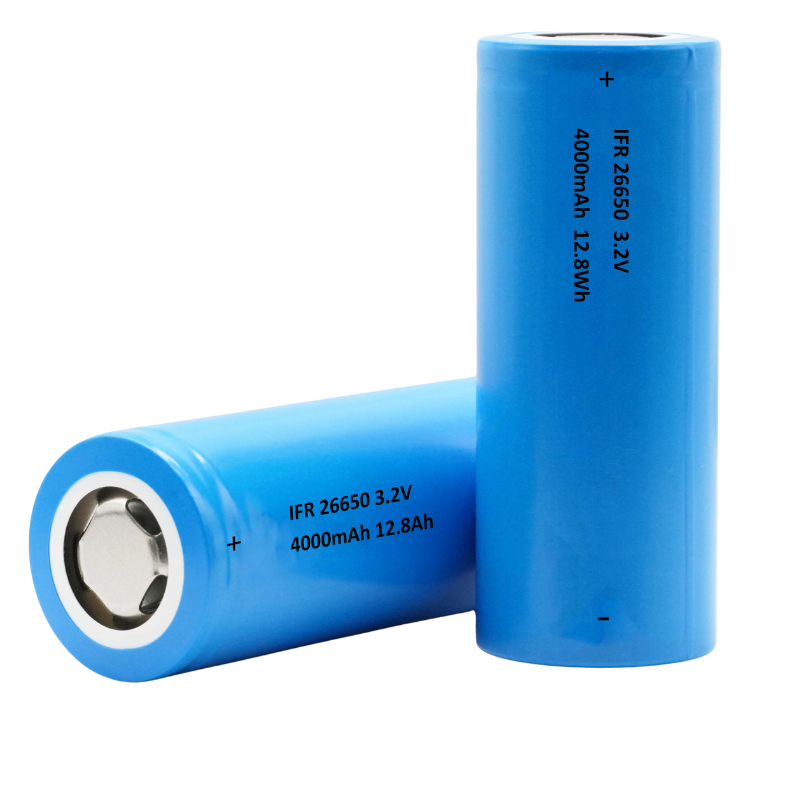

1.Quality Rechargeable LiFePO4 Cell IFR26650
2.Model: IFR26650
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 4000mAh
5.Made in China
2.Model: IFR26650
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 4000mAh
5.Made in China
1. Type: Cylindrical LFP rechargeable lithium ion battery
2. Dimension
Φ=26.2±0.3mm
H=65.3±0.2mm
3. Nominal Capacity: 4000mAh
Minimum Capacity: 3900mAh
Minimum Capacity: 3900mAh
4. Nominal Voltage: 3.2V
5. Limited Charging Voltage: 3.6V
5. Limited Charging Voltage: 3.6V
6. Recommended Charging Conditions: 0.5C CC/CV, cut off 0.01C
7. Max. Continuous Charging Current: 4000mA
7. Max. Continuous Charging Current: 4000mA
8. Max. Continuous Discharge Current: 12A
9. Cycle Life: 2000cycles [Capacity≥80%]
10. Weight: Approximately 88g
11. Internal Resistance: ≤20mΩ
12. Temperature
Charge: 0~+50°C
Discharge: -20~+60°C
Storage: -20~+45°C (3 months)
-10~+25°C (6 months)
-10~+25°C (6 months)
