Prodcuts > High Capacity Bare Cells > LiFePO4-IFR

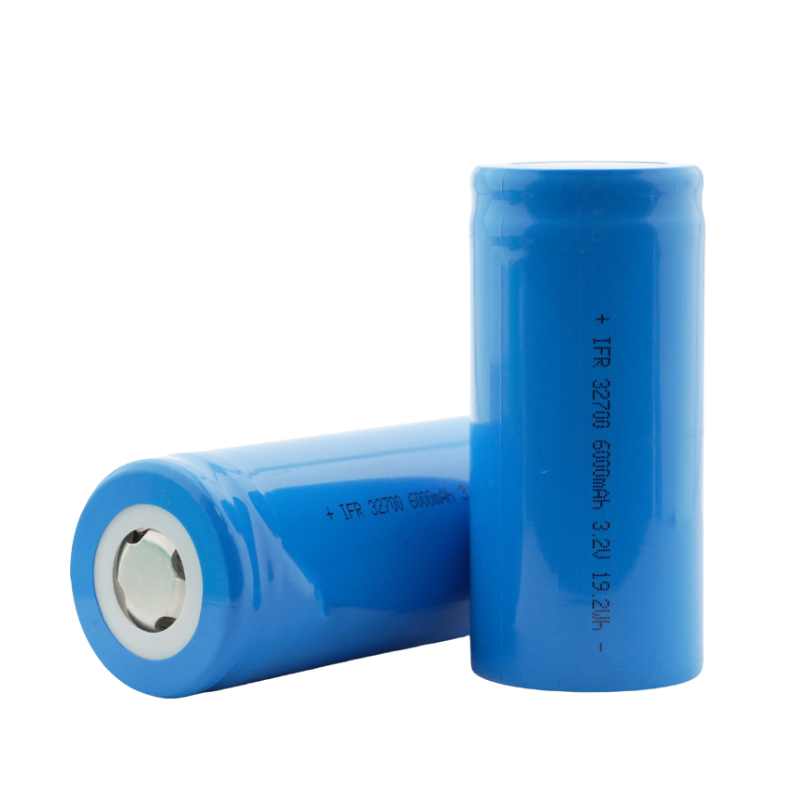

1.Quality Rechargeable LiFePO4 Cell IFR32700
2.Model: IFR32700
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 6000mAh
5.Made in China
2.Model: IFR32700
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 6000mAh
5.Made in China
1. Type: Cylindrical LFP rechargeable lithium ion battery
2. Dimension
Φ=32.4±0.3mm
H=70.5±0.2mm
3. Nominal Capacity: 6000mAh
4. Nominal Voltage: 3.2V
5. Limited Charging Voltage: 3.65V
5. Limited Charging Voltage: 3.65V
6. Recommended Charging Conditions: 0.5C CC to 3.65V, CV 3.65V to cut off 0.01C
7. Standard Charging Current: 3A
8. Rapid Charge Current: 6A
9. Standard Discharge Current: 3A
10. Rapid Discharge Current: 6A
11. Max. Continuous Discharge Current: 3C
7. Standard Charging Current: 3A
8. Rapid Charge Current: 6A
9. Standard Discharge Current: 3A
10. Rapid Discharge Current: 6A
11. Max. Continuous Discharge Current: 3C
12. Cycle Life: 2000cycles [Capacity≥80%]
13. Weight: Approximately 141g
14. Internal Resistance: ≤10mΩ
15. Temperature
Charge: 0~+60°C
Discharge: 5~+60°C
Storage: 0~+35°C (1 month)
0~+35°C (3 months)
0~+35°C (3 months)
0~+35°C (6 months)
