Prodcuts > High Capacity Bare Cells > LiFePO4-IFR

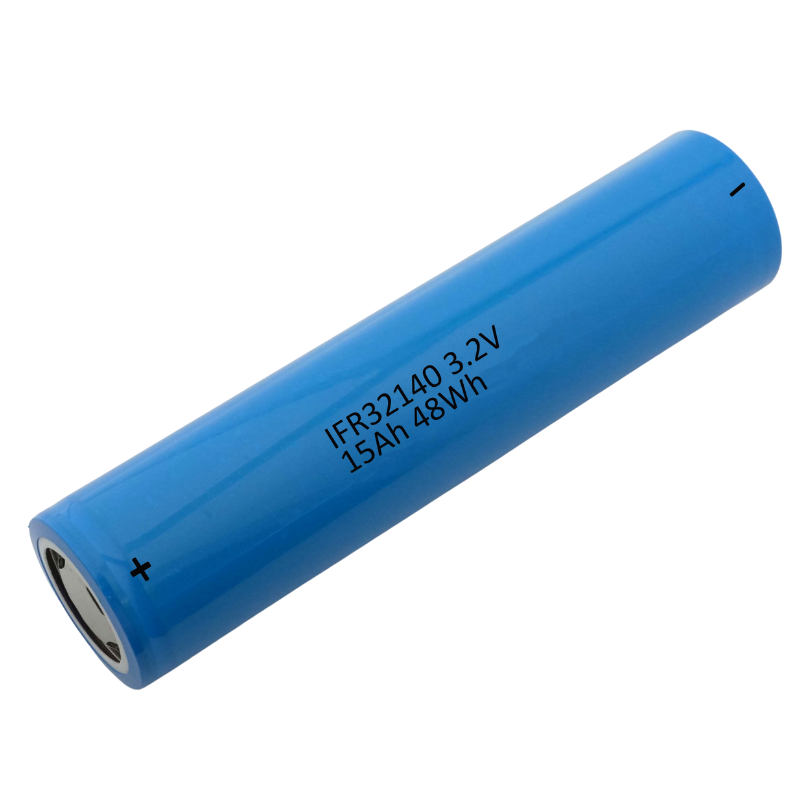

1.Quality Rechargeable LiFePO4 Cell IFR32140
2.Model: IFR32140
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 15000mAh
5.Made in China
2.Model: IFR32140
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 15000mAh
5.Made in China
1. Type: Cylindrical LFP rechargeable lithium ion battery
2. Dimension
Φ=33.2±0.2mm
H=140±0.3mm
3. Nominal Capacity: 15Ah
4. Minimum Capacity: 14.5Ah
4. Minimum Capacity: 14.5Ah
5. Nominal Voltage: 3.2V
6. Limited Charging Voltage: 3.65V
6. Limited Charging Voltage: 3.65V
7. Recommended Charging Conditions: 0.5C CC/CV, cut off 3.6V/0.05C
8. Standard Charging Current: 0.5C
9. Maximum Continuous Charging Current: 1C
9. Standard Discharge Current: 0.5C
10. Max. Continuous Discharge Current: 2C
8. Standard Charging Current: 0.5C
9. Maximum Continuous Charging Current: 1C
9. Standard Discharge Current: 0.5C
10. Max. Continuous Discharge Current: 2C
11. Cycle Life: 2500cycles [Capacity≥80%]
12. Weight: Approximately 300g
13. Internal Resistance: ≤3mΩ
14. Temperature
Charge: 0~+60°C
Discharge: -30~+60°C
Storage: -20~+45°C (3 months)
-10~+32°C (6 months)
