Prodcuts > High Capacity Bare Cells > LiFePO4-IFR

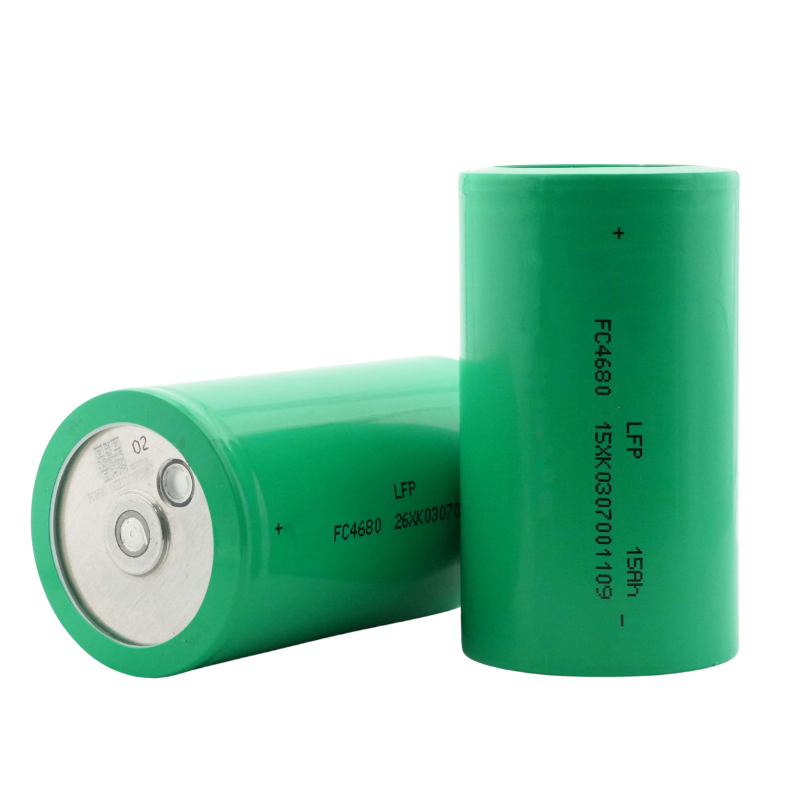

1.Quality Rechargeable LiFePO4 Cell IFR46800
2.Model: IFR46800
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 15000mAh
5.Made in China
2.Model: IFR46800
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 15000mAh
5.Made in China
1. Type: Cylindrical LFP rechargeable lithium ion battery
2. Dimension
2. Dimension
Φ=46.3±0.25mm
H=80.2±0.3mm
3. Nominal Capacity: 15Ah
4. Minimum Capacity: 14.7Ah
4. Minimum Capacity: 14.7Ah
5. Nominal Voltage: 3.2V
6. Limited Charging Voltage: 3.65V
6. Limited Charging Voltage: 3.65V
7. Recommended Charging Conditions: 0.5C CC to 3.65V, CV 3.65V to cut off 0.01C
8. Max. Charging Current: 1C
9. Standard Discharge Current: 0.2C
10. Max. Continuous Discharge Current: 1C
8. Max. Charging Current: 1C
9. Standard Discharge Current: 0.2C
10. Max. Continuous Discharge Current: 1C
11. Cycle Life: 2000cycles [Capacity≥80%]
12. Weight: Approximately 335g
13. Internal Resistance: ≤8mΩ
14. Temperature
Charge: 0~+55°C
Discharge: -20~+60°C
Storage: -20~+55°C (1 month)
-20~+45°C (3 months)
-20~+45°C (3 months)
-20~+25°C (6 months)
