Prodcuts > High Capacity Bare Cells > LiFePO4-IFR

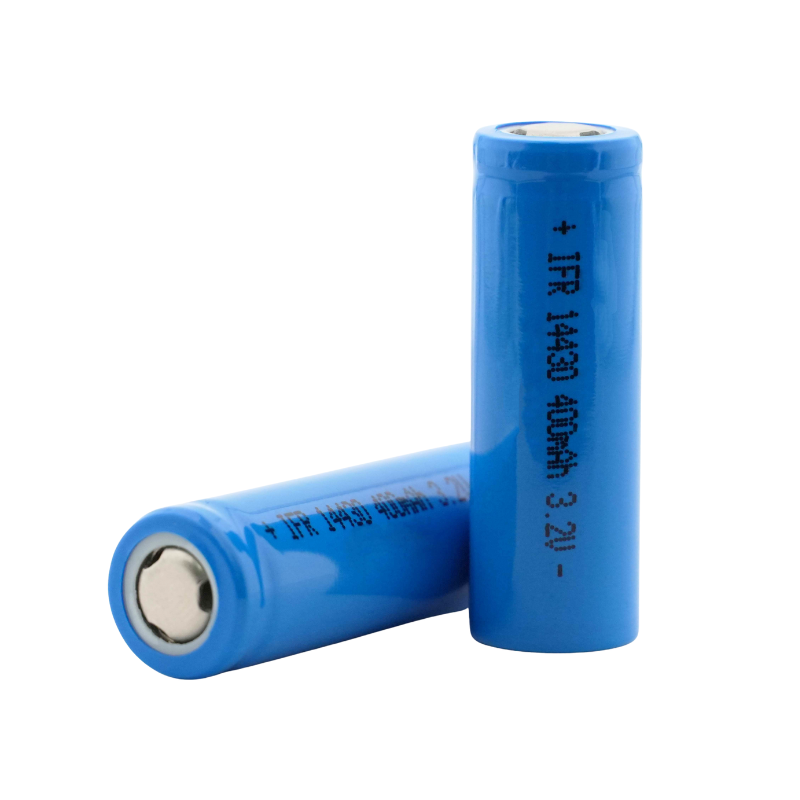

1.Quality Rechargeable LiFePO4 Cell IFR14430
2.Model: IFR14430
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 400mAh
5.Made in China
2.Model: IFR14430
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 400mAh
5.Made in China
1. Type: Cylindrical LFP rechargeable lithium ion battery
2. Dimension
Φ=14.1±0.2mm
H=43.6±0.5mm
3. Nominal Capacity: 400mAh
4. Miniumu Capacity: 370mAh
4. Miniumu Capacity: 370mAh
5. Nominal Voltage: 3.2V
6. Limited Charging Voltage: 3.65V
7. Standard Charging Current: 80mA
8. Max. Charging Current: 400A
9. Standard Discharge Current: 80mA
10. Max Continuous Discharge Current: 1200mA
11. Recommended Charging Conditions: 0.2C CC to 3.65V, then CV to ≤0.01C
6. Limited Charging Voltage: 3.65V
7. Standard Charging Current: 80mA
8. Max. Charging Current: 400A
9. Standard Discharge Current: 80mA
10. Max Continuous Discharge Current: 1200mA
11. Recommended Charging Conditions: 0.2C CC to 3.65V, then CV to ≤0.01C
12. Weight: Approximately 15g
13. Internal Resistance: ≤60mΩ
14. Temperature
Charge: 0~+45°C
Discharge: -20~+60°C
Storage: -20~45°C (1 month)
-20~+35°C (3 months)
-20~+25°C (6 months)
-20~+35°C (3 months)
-20~+25°C (6 months)
