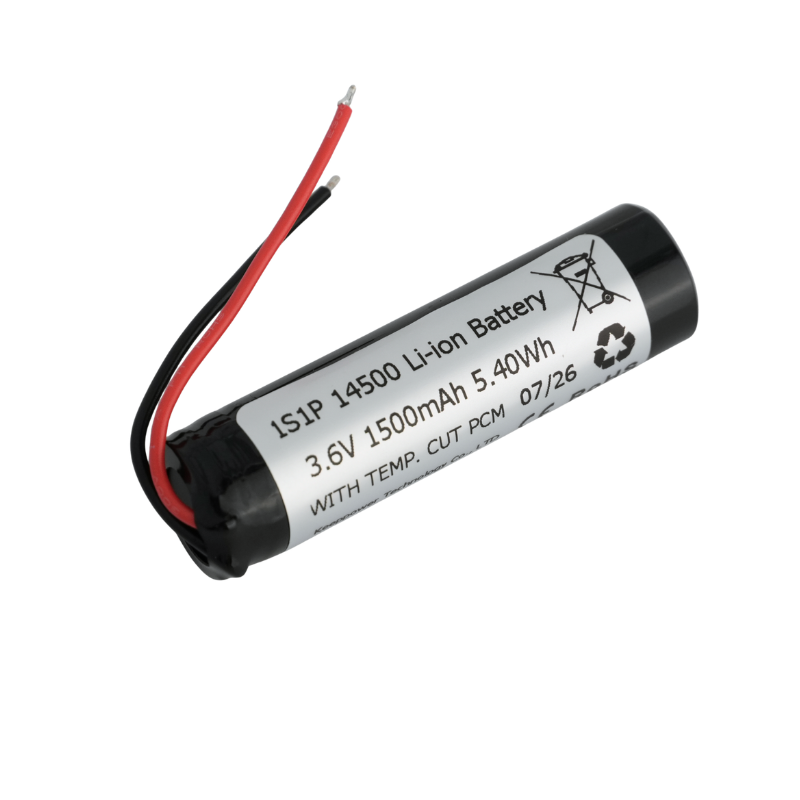

* Protected 1S1P 14500 3.6V 1.45Ah Li-ion NMC Battery with Temp. Protection
* Brand: Keeppower
* Part No.: 1S1P 14500
* Maximum Size:（D）14.7*（L）53.1mm
* Nominal Voltage: 3.6V
* Nominal Capacity: 1500mAh
* Weight: 25g
* Brand: Keeppower
* Part No.: 1S1P 14500
* Maximum Size:（D）14.7*（L）53.1mm
* Nominal Voltage: 3.6V
* Nominal Capacity: 1500mAh
* Weight: 25g
● Model No.: 1S1P 14500
● Nominal Capacity: 1500mAh
● Minimum Capacity:14580mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Standard Charging/Discharging Current: 300mA
● Maximum Charging Current: 1050mA
● Maximum Discharging Current: 1.5A
● Minimum Capacity:14580mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Standard Charging/Discharging Current: 300mA
● Maximum Charging Current: 1050mA
● Maximum Discharging Current: 1.5A
● Maximum Peak/Plus Discharge Current: 3.0A
● In Built Safety Circuitry
● Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
● 4.20V maximum voltage and 2.50V cut-off voltage
● Over 500 charge-discharge cycles
● Weight: 25g
● Maximum Dimension: （D）14.7*（L）53.1mm
● Temperature Protection:
● In Built Safety Circuitry
● Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
● 4.20V maximum voltage and 2.50V cut-off voltage
● Over 500 charge-discharge cycles
● Weight: 25g
● Maximum Dimension: （D）14.7*（L）53.1mm
● Temperature Protection:
Charge Over-Temp. Protection: +45 ± 5 ℃
Charge Low-Temp. Protection: +0 ± 5 ℃
Discharge Over-Temp. Protection: 60 ± 5℃
Discharge Low-Temp. Protection: -20 ± 5° C
● Storage Temperature:
Storage: -20 to +60° C (Less than 1 month)
-20 to +45° C (Less than 3 month)
Storage: -20 to +60° C (Less than 1 month)
-20 to +45° C (Less than 3 month)
Note: In addition to conventional overcharge, over-discharge, and overcurrent protection, this BMS (Battery Management System) board features an enhanced temperature protection function. Once the temperature reaches the preset safety threshold, the protection board will immediately cut off the load on the output side.
